TELECOMMUNICATION
EQUIPMENT
Изображение недоступно

PVS LX15 Network gateway
(2х RJ45 Ethernet / 5х Serial / 2хUSB / 16xIn + 2xOutdigital port)



Scope - systems of monitoring and administration of equipment for mobile and fixed communication, industrial automation of oil and gas pipelines, electric power facilities, railway transport, multi-functional automated systems of commercial electricity accounting (ASECCA)
Features:
     - Event driven data collection and processing system
     - Distributed RTU Control System (Remote Terminal Unit)
     - support for information interactions protocols IEC61107, IEC1142, DLMS / COSEM for connecting to electricity meters
     - data transmission with RS232 / RS485 / C1-over-TCP / IP, Modbus-over-TCP / IP protocol support
     - transmission of signaling system messages
     - Support for network protocols TCP, UDP, IPv4, SNMP (v1, v2), ICMP, ARP, SSH, DHCP, Telnet, FTP, PPP

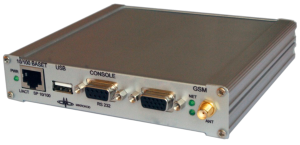

MKM-01. Network mini-gateway
(RJ45 Ethernet / USB / RS232 / 16 digital input / GSM)


Data transmission in industrial automation systems, telemechanics, telemetry, telematics, monitoring of remote objects, operational control of fire alarm, video surveillance, and the like. Support for GSM 850/900/1800/1900, sending SMS, voice messages.

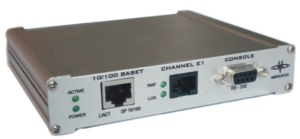

MKG-ASTERIX. Mini IP-PBX with E1 interface

The best solution for a small corporate telephone network. Mini IP-PBX provides a full range of VoIP services for the telephone network: voice menus, voice mail, answering machine, call routing both within the VoIP network and an external line that can be connected to port E1, the ability to create groups of subscribers with different rights. Can be used as a VoIP gateway for connecting an IP-PBX to a telephone network, to an existing PSTN, etc.
Features:
     - capacity: up to 150 internal subscribers, 20 simultaneous calls
     - simultaneous support for SIP / H.323 protocols
     - connection to PSTN via E1 with CRC4 support
     - RADIUS message support (authorization and billing)



SIREN-IP. Alarm signaling set via IP network.
APLONG-4. Phone IP extension

Organization of remote removal of ATC telephone subscribers. Technology of voice information transmission over TCP/IP network is used for prolongation of telephone lines. Can be used for duplex transmission of any voice information.
Features:
     - number of channels – 4
     - voice data transmission in accordance with recommendation G.711
     - hardware echo compensation in accordance with recommendation G.165
     - network connection interface - RJ45 Ethernet
     - Support for “PacketLossCompensation” lost packet compensation

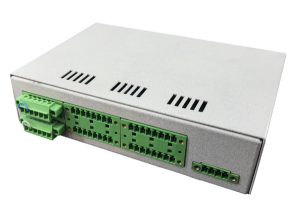

GORGAN. 4-channel digital video recorder

The GORGAN digital video recorder is designed to work with four analog video cameras and microphones, making it an ideal device for use in integrated security systems.
Technological features:
- Files recording in MPEG-4 format on a local disk with the ability to view and transfer saved files to client program ;
- support for five recording modes: manual mode, scheduled, continuous, after motion detection, combined on schedule and after motion detection, and after an alarm;
- Motion Detection with Video Detector: up to 10 sensitivity levels can be set up for each of the multiple motion detection areas.;
- setting the time of the previous recording and recording after the event from 1 to 60 seconds;
- compressing video information over the H.264 protocol and audio information - AAC or G.711;
- synchronize video and audio recording and pack them into the MPEG-4 container
- connection via RJ45 Ethernet, EDGE, 3G / 4G, Wi-Fi.
- Dynamic Domain Name System DDNS (DynDNS or No-IP service);
- backup GSM channel alarm system and control
