BLUETOOTH
LOW ENERGY
TECHNOLOGIES
Изображение недоступно



The division of the company is engaged in the development and implementation of solutions based on BLE technology.
BLE technology provides high-quality, easy-to-use, reliable and cost-effective ultralow power (ULP) solutions on the wireless communications market.
Ideal for location and tracking systems, mobile marketing, sports and fitness sensors, medical sensors.

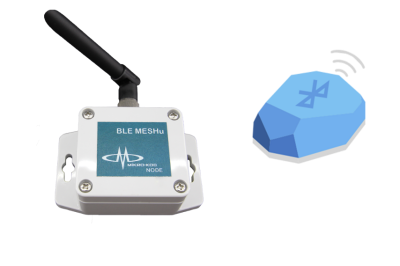

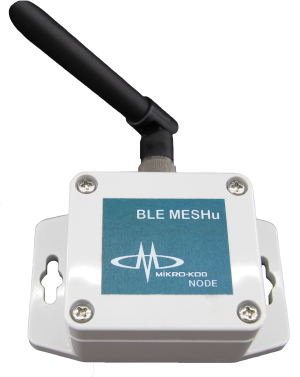

BLENode-52. BLE network wireless repeater.

Used to build a wireless network of positioning systems indoors. Performs a dual function - a data retranslator in the network and a navigation system beacon. The device connects to the location object's labels and transmits from them information about their location
Features:
    - protocol: Bluetooth v5.0
    - distance: up to 130 m (max TX power)
    - routing: static, dynamic
    - control: multifunctional deep button – On/Off, network connection, status indication
    - Setup/Diagnostic: via the network, via the iOS app
    - indicator: LED, timer indication after pressing the button
    - Battery life: from 6 to 36 months, depending on type of battery, transmitter settings, the amount of information being transmitted, the frequency of transmission of broadcast messages and network data

BLETag. BLE mark.
MKL-Beacon. BLE location tag (BLE LocationBeacon).

MKL-Beacon energy efficient, low cost transmitter that is able to tell the receiving device (tag, smartphone, tablet, etc.) about its presence. The technology allows smartphones and other devices to perform certain actions, when the latter are in close proximity to the MKL-Beacon sensor.
    - Battery life up to 5 years
    - Distance up to 150m
    - additional packages
    - connection, telemetry, user-defined
    - setup: via iOS app
    - protocols iBeacon (Apple) and Eddystone (Google)

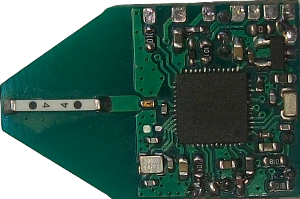

Wireless node WLENode-73

WLENode-73 are nodal radio frequency modules for building a linear network, including IoT (from 2 to 16 devices). Wireless modules act as network repeaters and transmit and exchange data between physical devices and computer systems.
The WLENode-73 uses a nRF52832 NORDIC SoC with low power consumption (multiprotocol SoC with BLE 4.0 radio Bluetooth). You can use a special gateway to connect to an external IP network, it can be connected locally to an IOS or Android smartphone with BLE support.
Features:
• SoC: Nordic nRF52832• operating current: 3 µA - Idle mode
• Bluetooth: BLE 5.0 radio        5.4 mA - + 0dBm output power
• frequency range: 2.4GHz (2.36000 - 2.4835GHz)        7.5 mA - + 4dBm output power
• RX Sensitivity: -96 dBm • Battery type: CR2032 - 6 months
• TX Power: [-20 dBm, +4 dBm]        СР2477 - 1 year
• built-in antenna: 2 dB Typical application scenarios:
• baud rate: 2 Mbps        • professional lighting
• network data transmission period: 20 mS         • multiprotocol devices
• settings / diagnostics: over the network        • mesh networks
• control: multifunction button        • smart home
• indicator: LED on the button        • collection of metrological information
• routing: static        • security systems
• data protection hardware 128-bit AES CCM, ECB, AAR        • sports and fitness
• operating voltage: from 1.7 v to 3.6 v
